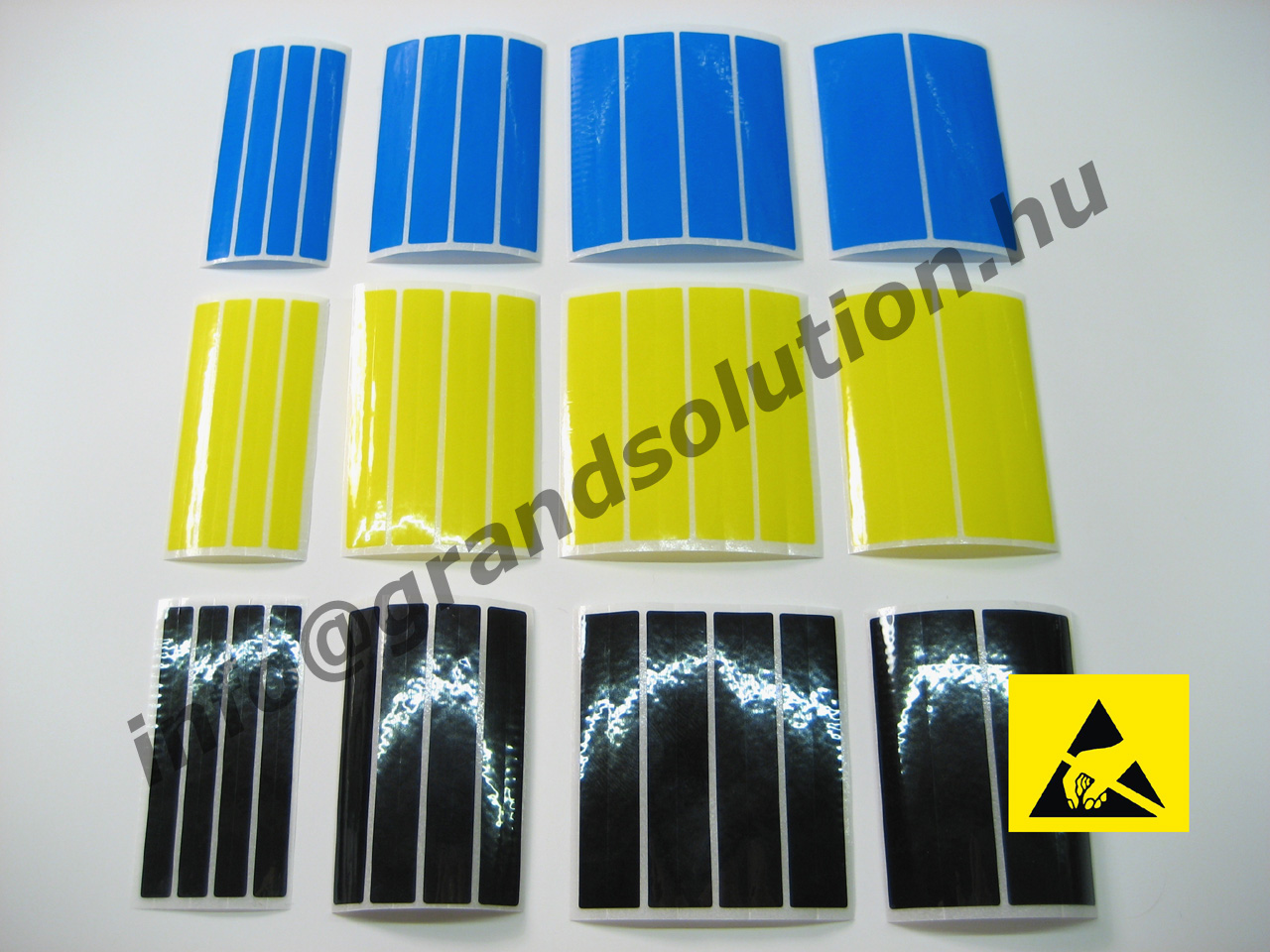

SMT Single Splice Tapes

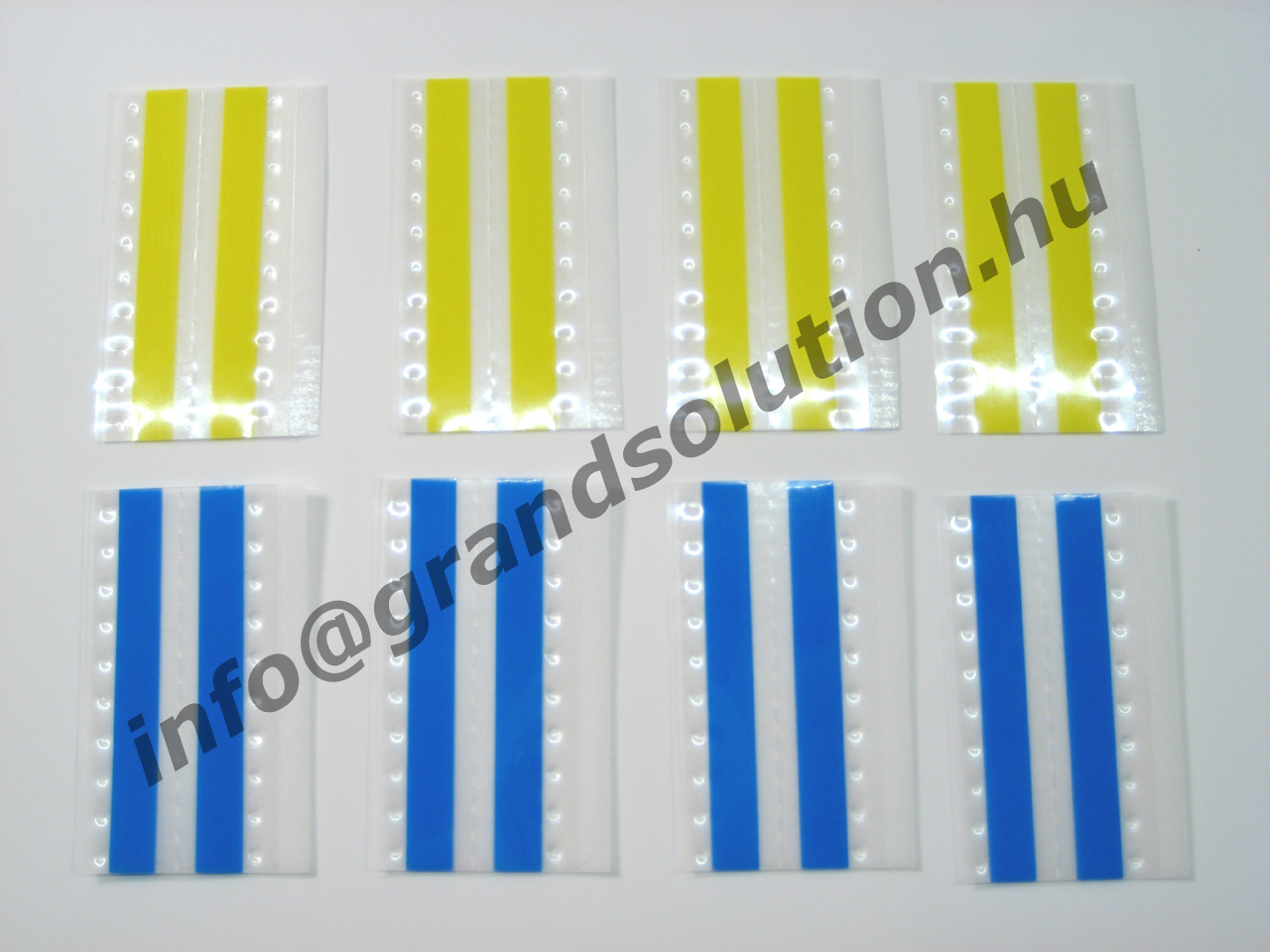

Can be used for paper and plastic carrier tape. Normally used with brass SMT splice clips, see below. Available width: 8, 12, 16, 24, 32, 44, 56 mm Available materials: normal with two different adhesive strength and an ESD version. Can be used with most of component feeders and machines. For example: Assembléon, Europlacer, Fuji, Hitachi, Yamaha iPulse, JUKI, Panasonic, Siemens ...etc Part numbers: ST 0xx SB , ST 0xx SY , ST 0xx ESDSMT Double Splice Tapes
Can be used for paper and plastic carrier tape. The main advantage of SMT double splice tape: there is no need for brass SMT splice clips. Available width: 8, 12, 16, 24 mm Available materials: normal with two different adhesive strength and an ESD version. Can be used with most of component feeders and machines. For example: Assembléon, Europlacer, Fuji, Hitachi, Yamaha iPulse, JUKI, Panasonic, Siemens ...etc Part numbers: DST 0xx SB , DST 0xx SY , DST 0xx ESDSMT Double Splice Tape PLUS

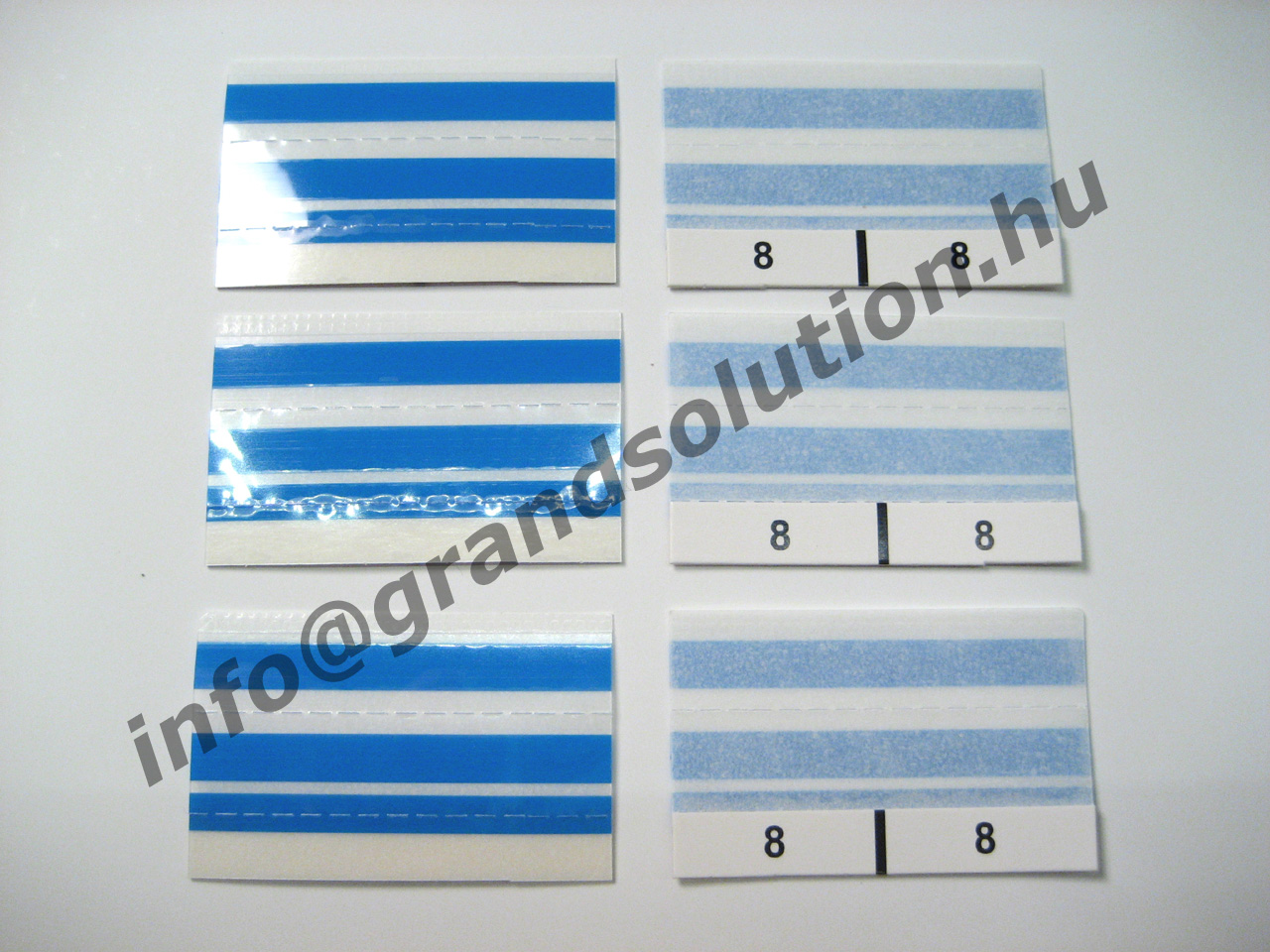

This is an improved Double Splice Tape with an additional strip. The tree fold structure results in (törlendő) a very strong and flexible joint which folds around the carrier tape. The main advantage of SMT double splice tape PLUS: there is no need for brass SMT splice clips for a very strong joint. Alignment guide for easier positioning. Available width: 8, 12, 16, 24 mm Available materials: normal with two different adhesive strength and an ESD version. Can be used with most of component feeders and machines. For example: Assembléon, Europlacer, Fuji, Hitachi, Yamaha iPulse, JUKI, Panasonic, Siemens ...etc Part numbers: DSTP 0xx SB , DSTP 0xx SY , DSTP 0xx ESDSMT Splice Tape Rolls

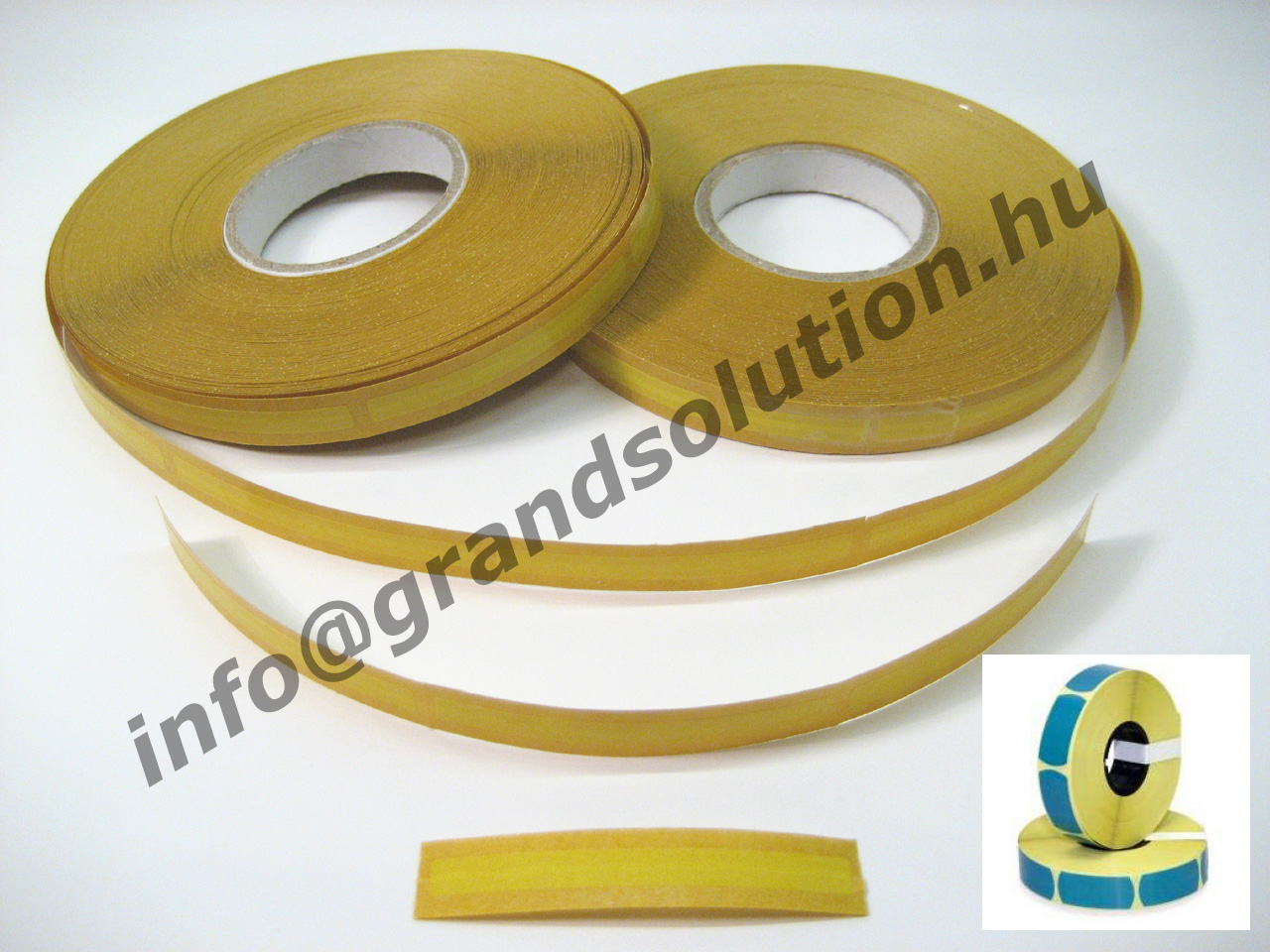

Can be used for paper and plastic carrier tape. Normally used with brass SMT splice clips, see below. Available width: 8, 12, 16, 24, 32, 44, 56 mm Available materials: normal with two different adhesive strength and an ESD version. Can be used with most of component feeders and machines. For example: Assembléon, Europlacer, Fuji, Hitachi, Yamaha iPulse, JUKI, Panasonic, Siemens ...etc Part numbers: STR 0xx SB , STR 0xx SY SMT Single Splice Tape with Alignment guide

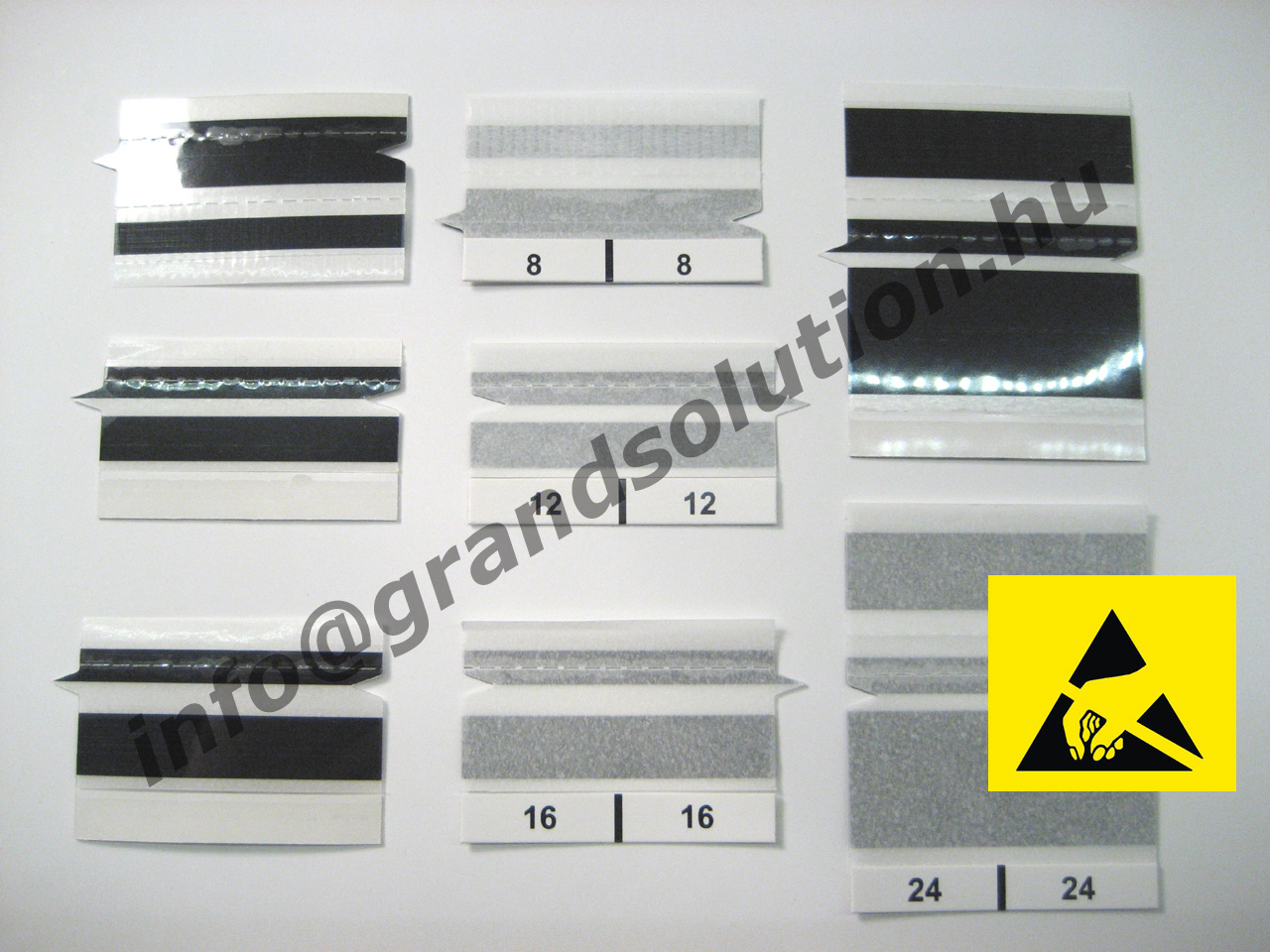

Can be used for paper and plastic carrier tape. Normally used with brass SMT splice clips, see below. Alignment guide for easier positioning. Available width: 8, 12, 16, 24 mm Available materials: normal with two different adhesive strength and an ESD version. Can be used with most of component feeders and machines. For example: Assembléon, Europlacer, Fuji, Hitachi, Yamaha iPulse, JUKI, Panasonic, Siemens ...etc Part numbers: STA 0xx SB , STA 0xx SY , STA 0xx ESDPanasonic SMT Splice Tape
This splice tape type is specially designed for Panasonic pick and place systems. The colour of the Panasonic Splice Tape is black therefore the sensor in the feeder can detect the tape if it is equipped with the recognition system. Alignment guide for easier positioning. Material: ESD Available width: 8, 12, 16, 24, 32 mm Part number: ST 0xx PBLFuji SMT Splice Tape

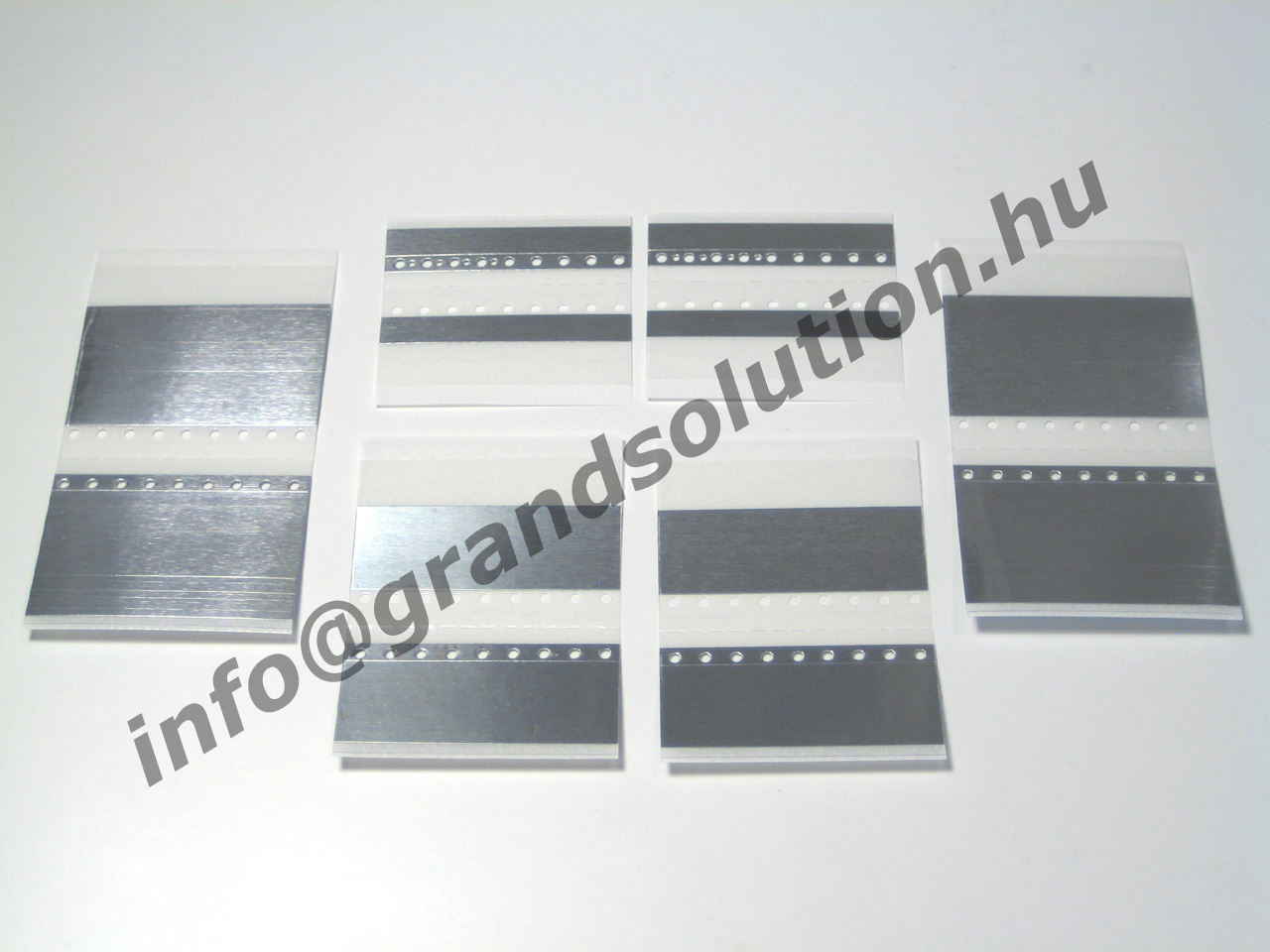

This splice tape type is specially designed for Fuji pick and place systems. Colour: silver Available width: 8, 12, 16, 24 mm Part number: ST 0xx FSSamsung SMT Splice Tape

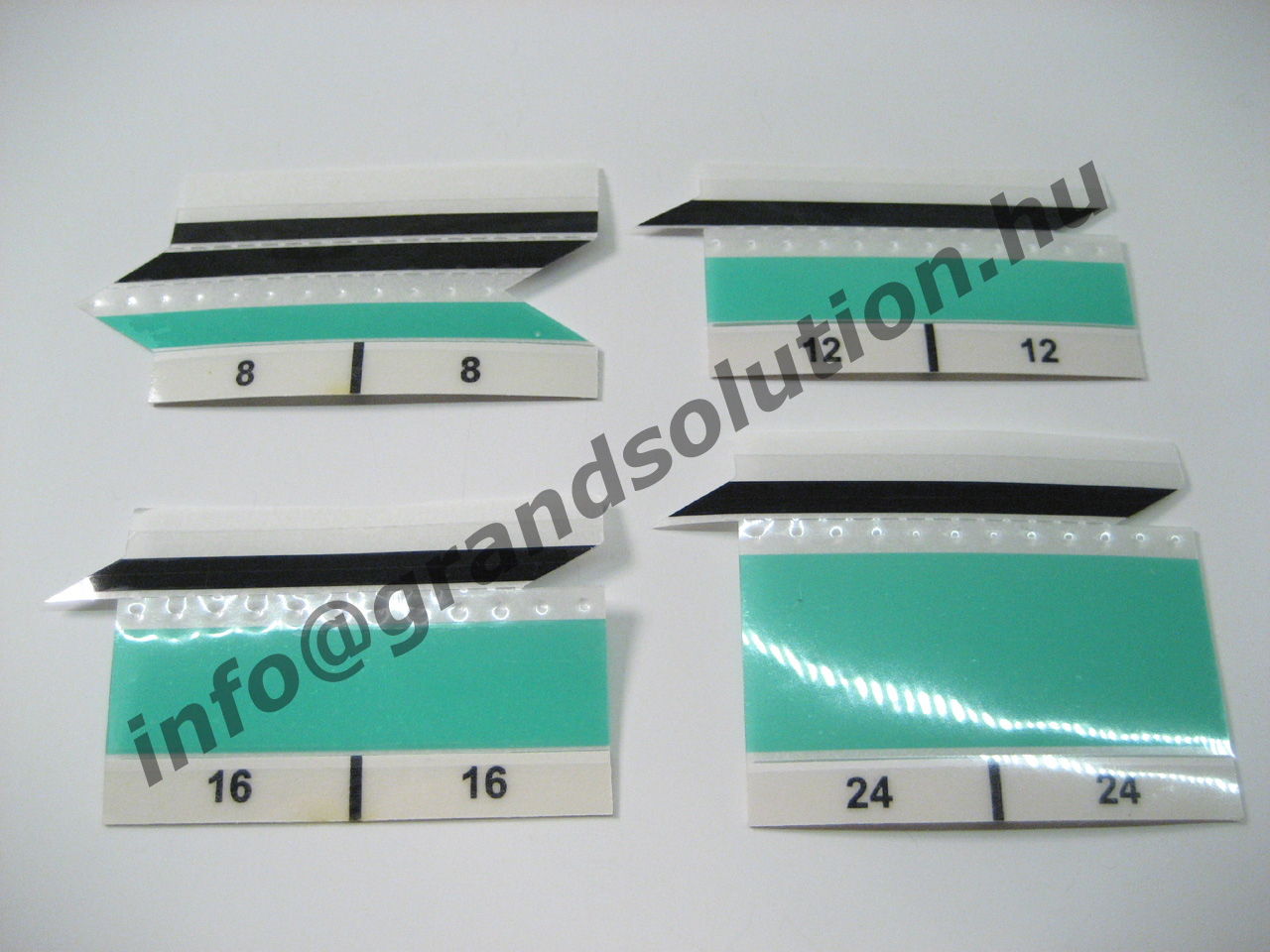

This splice tape type is specially designed for Samsung pick and place systems. Alignment guide for easier positioning. Colour: black and green Available width: 8, 12, 16, 24, 32, 44 mm Part number: ST 0xx SBLSMT Combined Splice Tapes

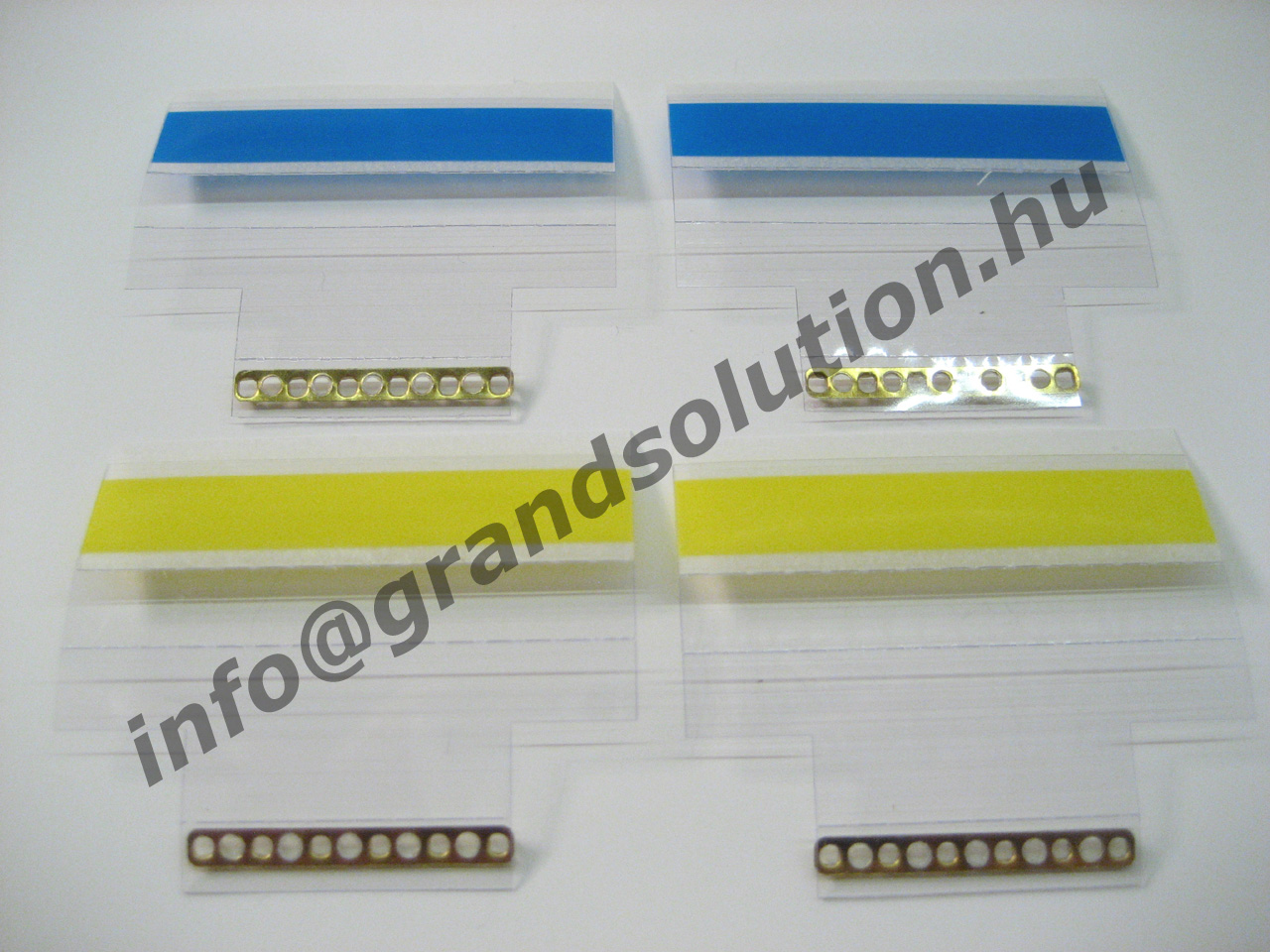

This design combines a single splice tape and a splice clip. Can be used for paper and plastic carrier. Available materials: normal with two different adhesive strength and an ESD version. Available width: 8, 12, 16, 24 mm Advantage: it is easier and faster than using a separate splice tape and a splice clip therefore it saves time at splicing. Can be used to replace separate splice tapes and clips with most component feeders and machines. For example: Assembléon; Europlacer; Fuji; Hitachi; Yamaha iPulse; JUKI; Panasonic; Siemens...etc Part numbers: CST 0xx SB, CST 0xx SY , CST 0xx ESDSplice Tapes for Axial and Radial Component Tapes used with Auto Insertion machines
This type of splices are is specially designed for A/I machines working with through hole technology (THT). Folds easily around component carrier tapes. Different splicing tools also available for all types Longer holes for faster and easier positioning Available: three and five hole design Part numbers: RST 003 , RST 005SMT and Auto Insertion Splice Clips

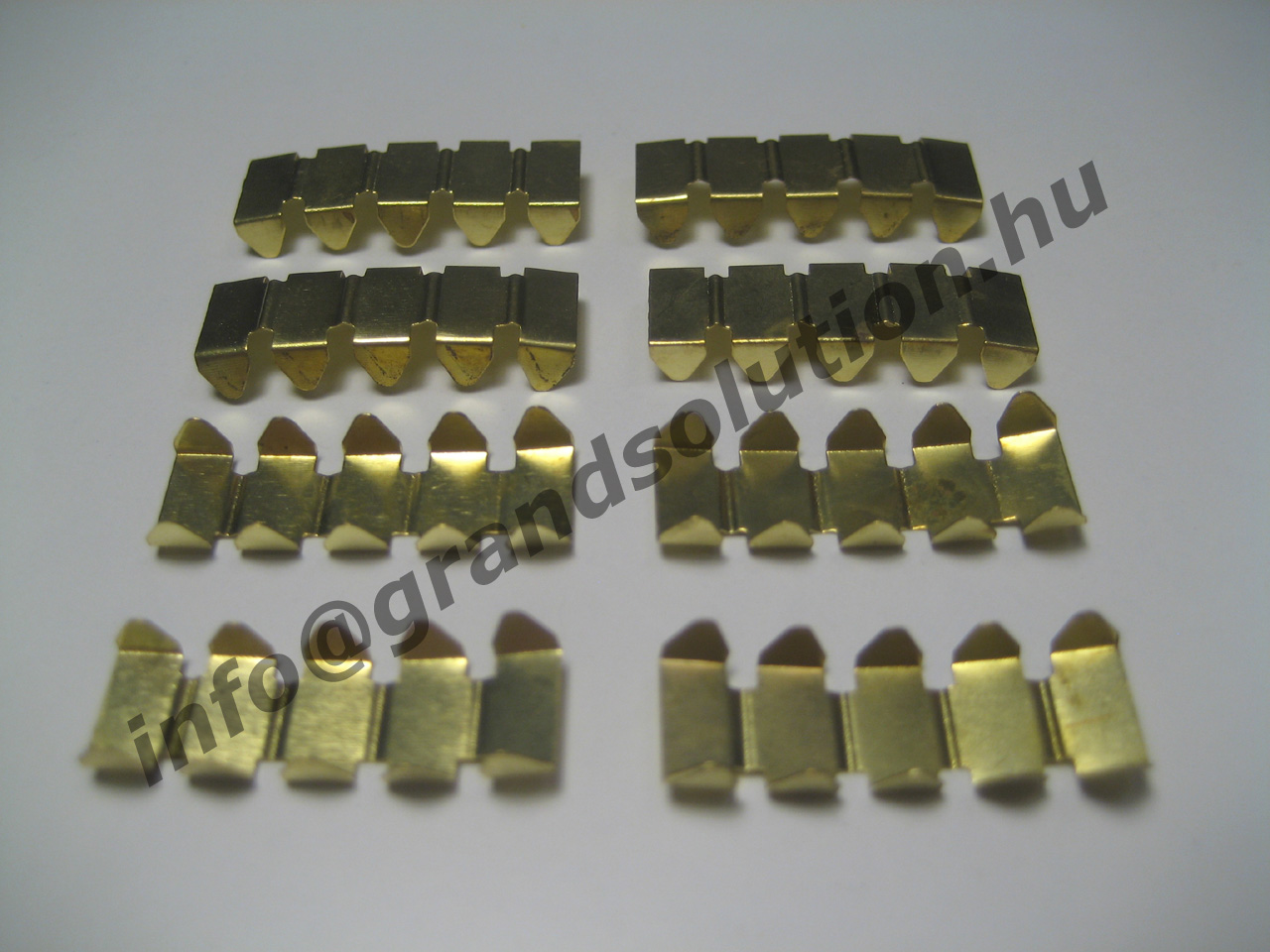

Used to connect component carrier tapes. Can be used on paper and plastic carrier tapes. Four designs available: normal, two kind of frame types and one for A/I machines using through hole technology. Material: brass Part numbers: SC 4000 , SC4001 , SC 4002 , SC4003Splice Clips for Axial and Radial Components used with Auto Insertion machines
Used to connect component carrier tapes. This splice clip types are specially designed for Auto Insertion machines working with through hole technology. Material: brass Part number: SC 4003SMT Splicing Tool

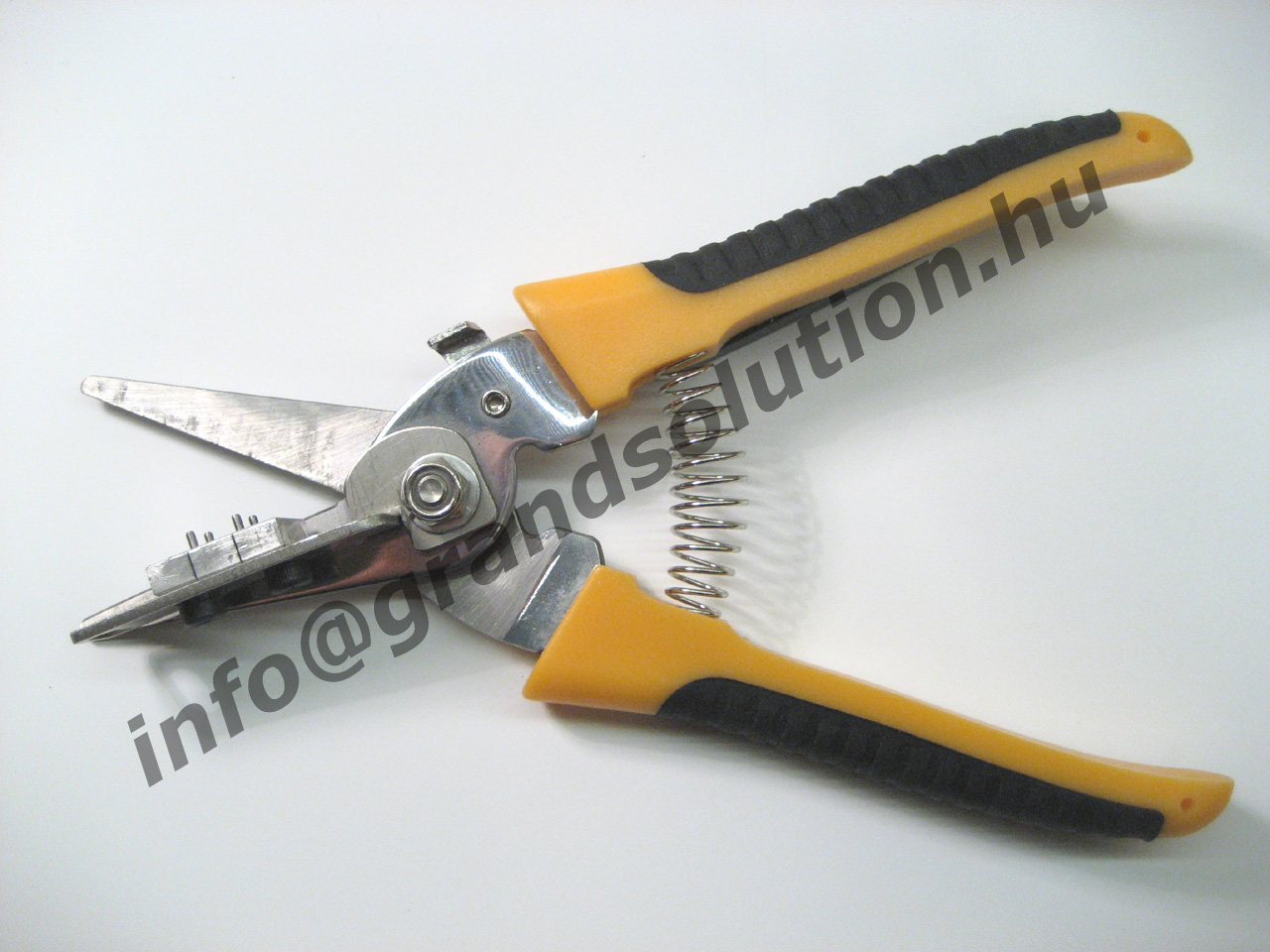

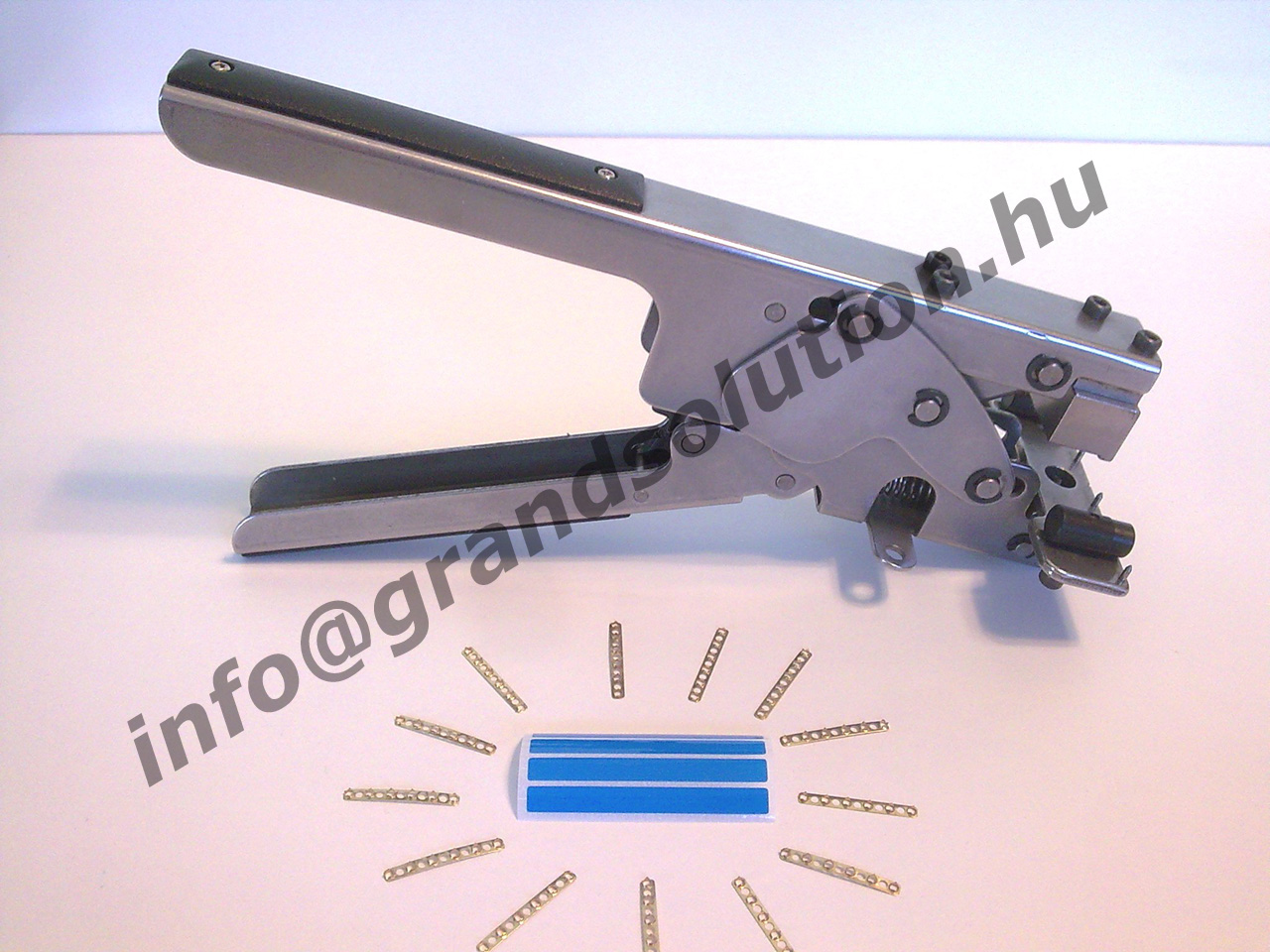

Used for crimping special brass SMT splice clips quickly and securely join SMT component tapes and allow them to pass through of the feeder. The locating pins of the splicing tool ensure the accurate alignment. Part number: SC 01SMT Splicing Scissors
The splicing scissors have a specially designed “Pin Plate” with two pins in two rows used for different component sizes. Advantages: accurate cutting, minimal component wastage Part number: SC 02SMD Cover Tape Extenders
Tape Extenders reduce the loss of components when you have no leader tape to work with on SMD component reels. Adds an additional length to the carrier tape as a leader. They feed into the SMD feeder as piece of cover tape. Material: normal and ESD Available in different widths from 8 up till 32 mm carrier tapes Part numbers: CTE 0xx Y , CTE 0xx ESDSMD Cover Tapes

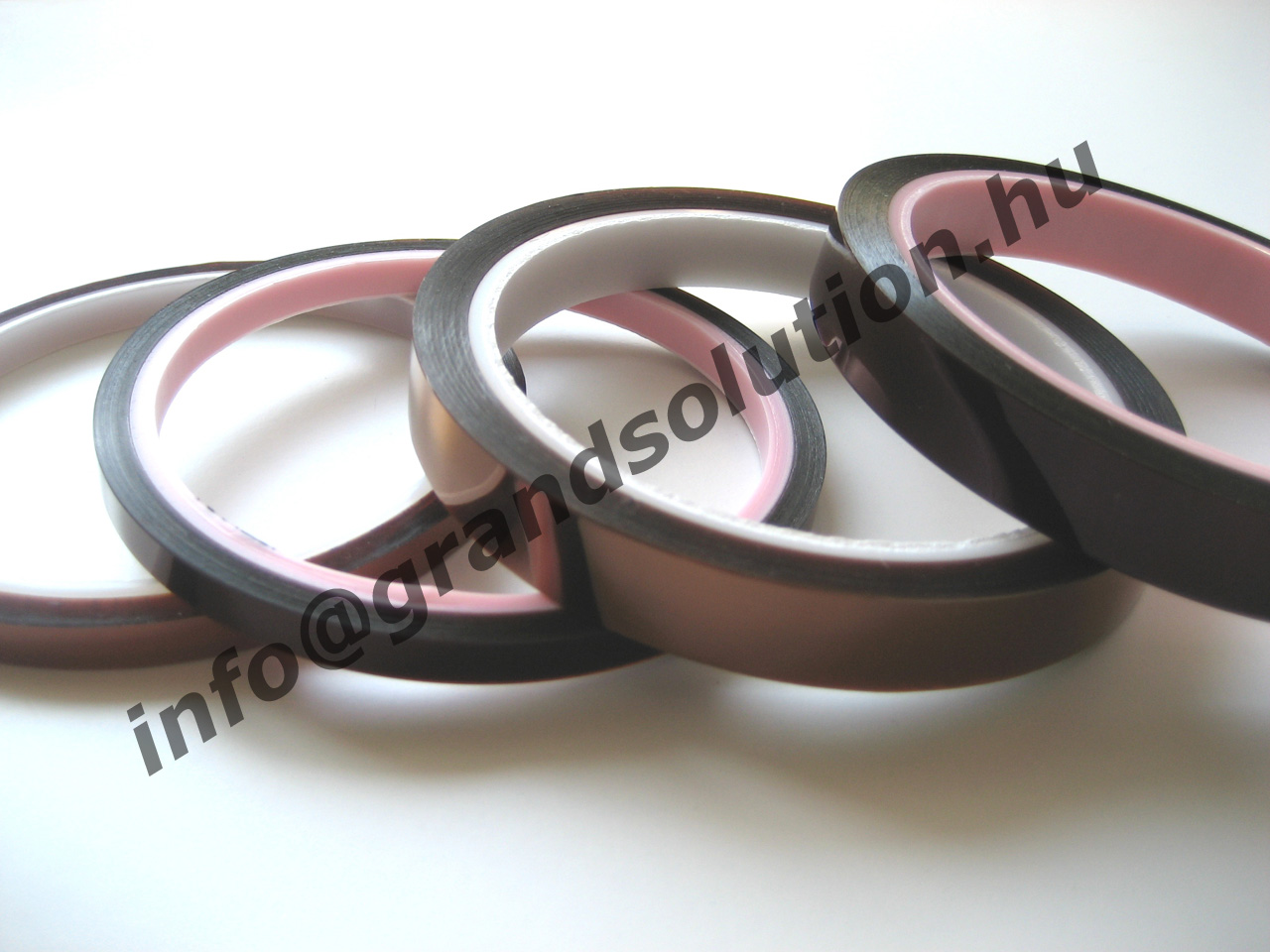

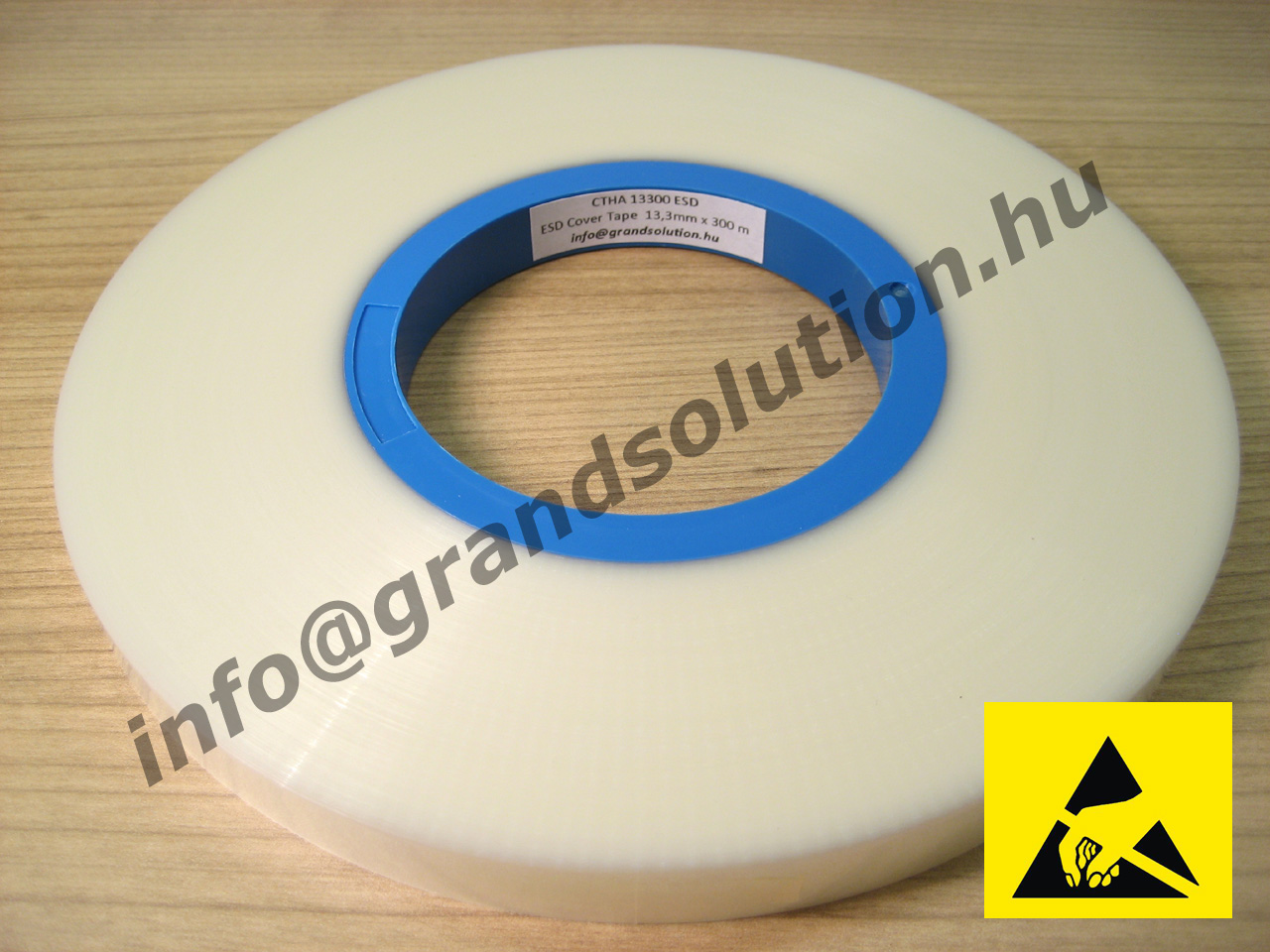

Cover tapes are used to seal onto the top surface of the carrier tape in order to hold the components in place after insertion. Available with Heat or Pressure activated adhesive Material: normal white or ESD Available widths: 4 mm, 9.2 mm, 13.3 mm, 21 mm, 25.5mm, 37.5mm etc Lengths: from 300 m as standard, but other lengths are available up on request Part numbers: CTHA xx300 W , CTPA xx300 ESDHigh Temperature Masking Tape (also known as Kapton Tape)
Polyamide adhesive tape with silicone resin Used for masking gold contacts of printed circuit boards during wave solder or solder dip process. High heat resistance (280 °C) Very good solvent resistance and dielectric insulation properties Colour: gold Length: 33 m Different widths available Masking dots also available Part number: KT 0xxSMT Stencil Cleaning Rolls

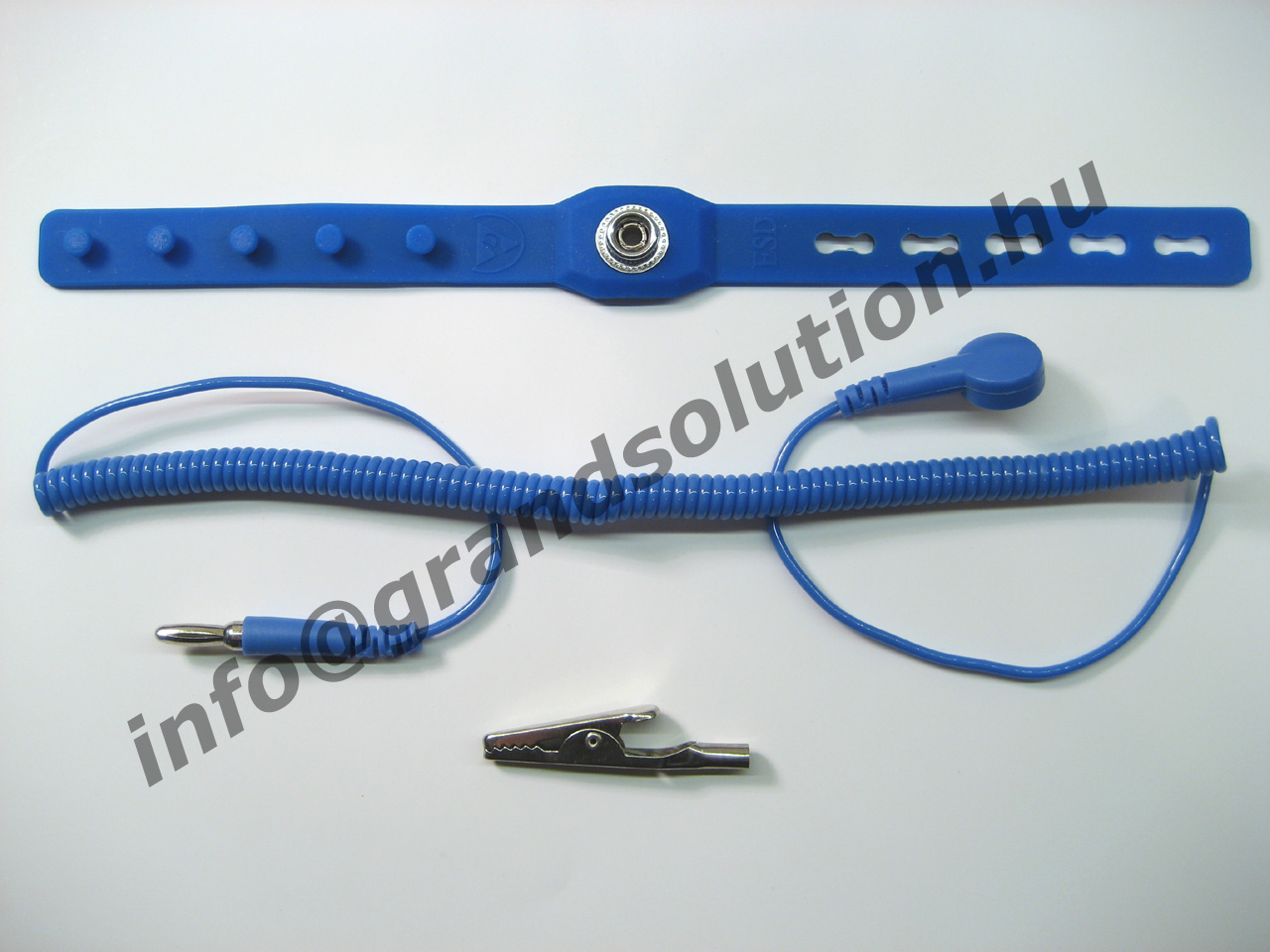

Stencil Cleaning Rolls used for cleaning the underside of the stencil during PCB manufacturing process. Non-woven low lint fabric, high absorbency Standard and custom rolls also available Compatible among others with: DEK, MPM, EKRA, Panasonic etc...Antistatic wrist band with grounding cord
Easy to use Durable Comfortable Connection to grounding point with banana plug or crocodile clip (also included) Material: high quality silicone rubber Grounding cord length: 70 – 230 cm Colour: blue as standard, but other colours are also available Part number: VBB 022 Security Labels

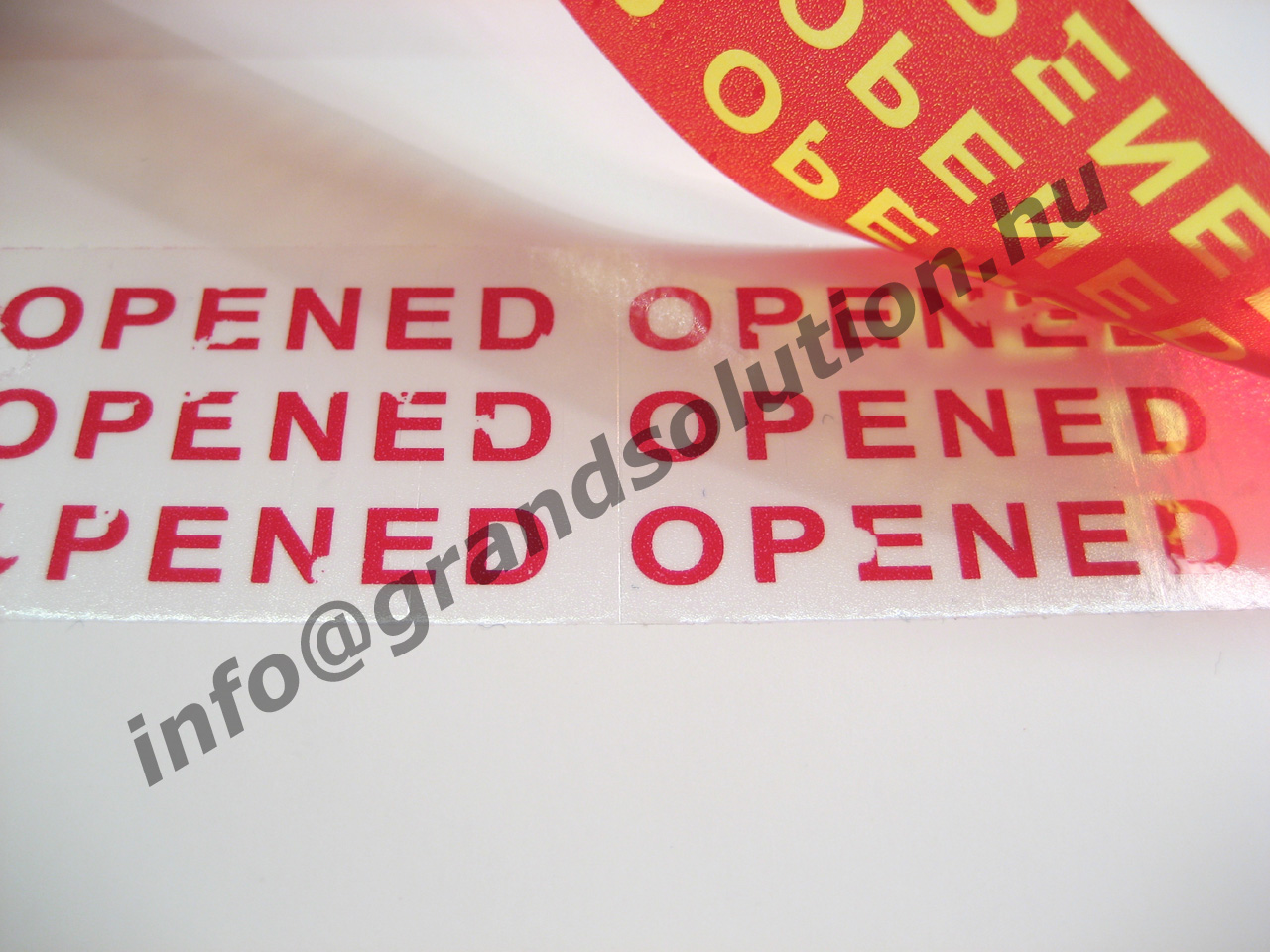

Tamper evident security labels securely seal important, valuable shipments, devices, confidential documents: in case of unlawful opening it leaves marks on the surface which can not be removed without any trace. Computer printable Different sizes available Logistic labels also available
